Footbridge over Neckar River in Esslingen-Mettingen

© schlaich bergermann partner / Michael Zimmermann

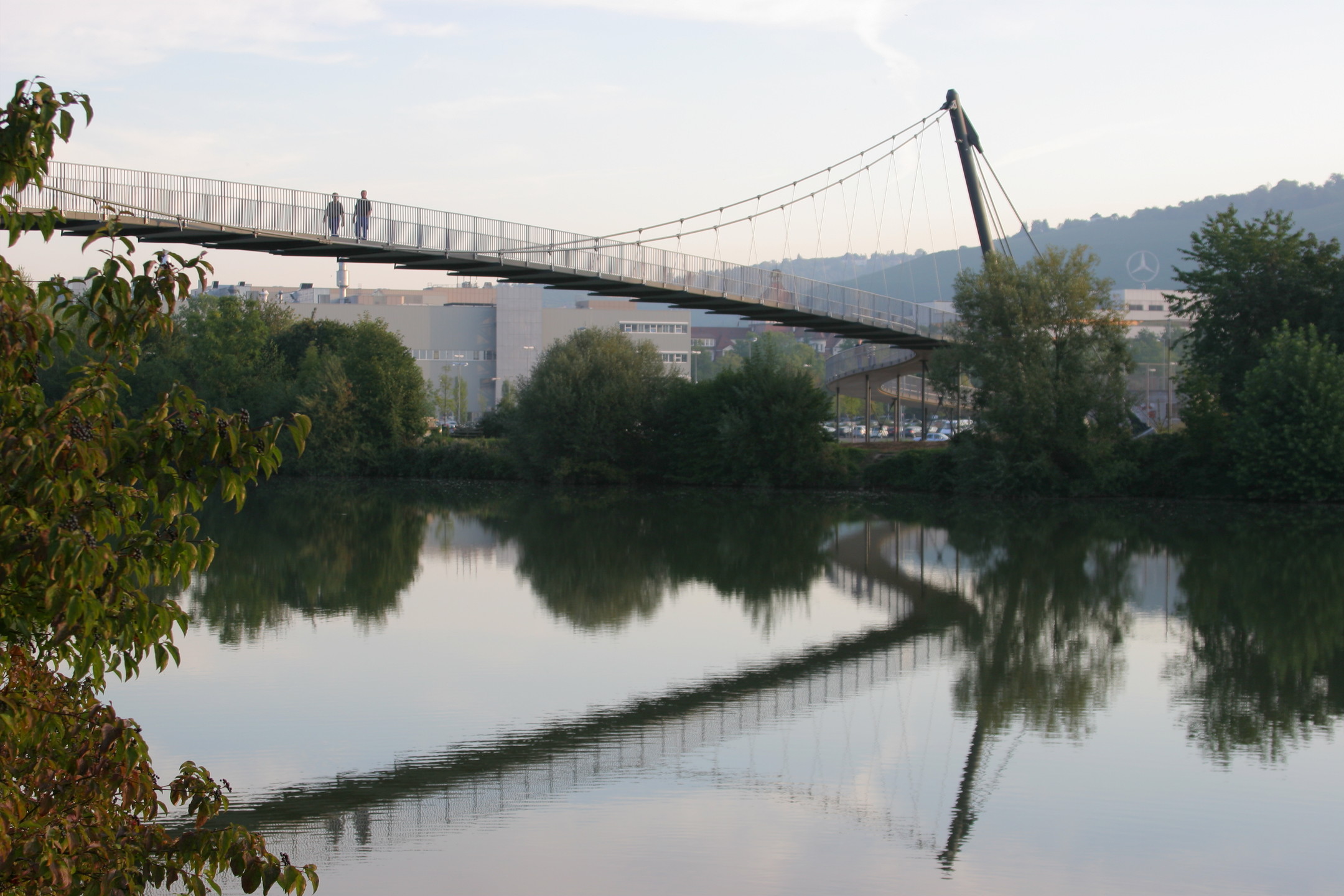

A light and elaborate suspension bridge has been woven into the difficult industrial cityscape. The slender concrete slab is suspended by hangers from the main cable. Transverse beams carry the hanger cables, structure the bottom view and also serve to provide a continuous support for the slab. At the middle of the bridge the concrete slab is directly coupled with the suspension cable across the saddle. Towards the handicapped and bicycle appropriate ramps the slab spans between the transverse beams, which are supported in the middle on slender columns. The bilaterally arranged tripod for the anchorage of the suspension cables signals from afar the location of the bridge. It presents the necessary orientation for the traversing of the Neckar and “leads” the user of the bridge across the bent ramp to the bridge.

Location
Esslingen, Germany
Architect
schlaich bergermann partner
Owner
Stadt Esslingen mit DaimlerChrysler AG
Project Responsibility
Andreas Keil

Insights

Technical Data

Length
295 m (967 ft)
Span
105 m (344 ft)
ramps 95 m each (311 ft)
Height of mast
17 m (55 ft)
Deck over water
7 m (23 ft)
Material
concrete, steel, stainless steel cables
