• Parabolic Trough Power Plant Astexol 2

Parabolic Trough Power Plant Astexol 2

Badajoz, Spain, 2012

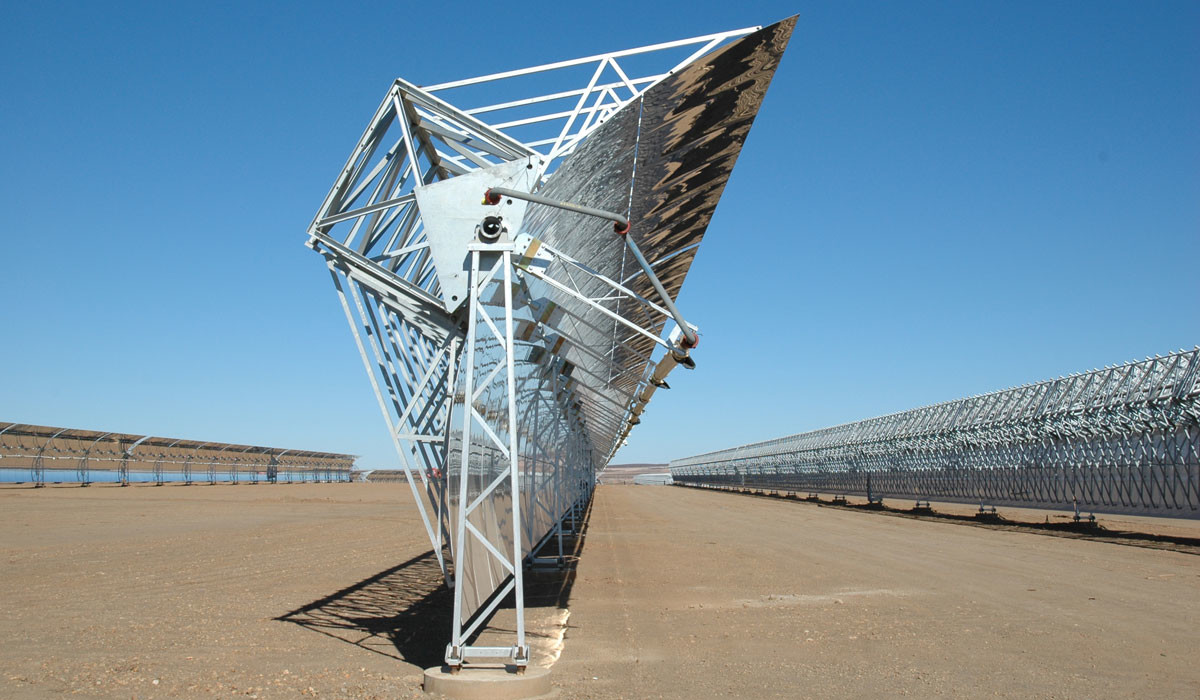

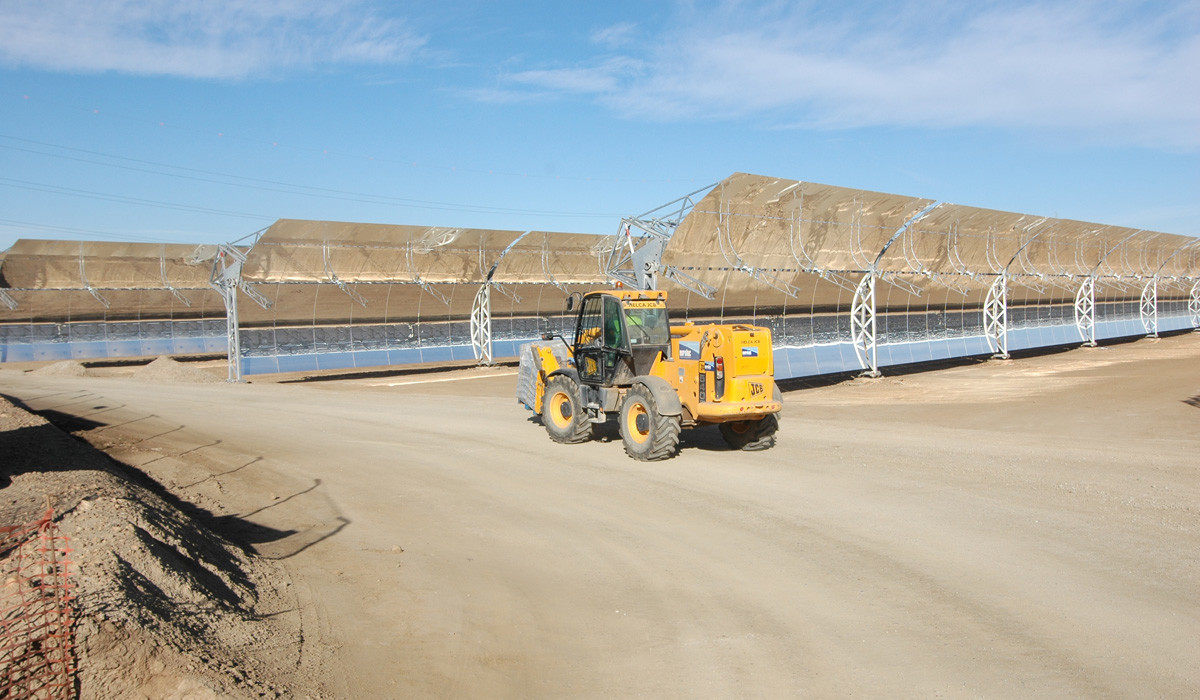

The 50 MW solar thermal powerplant Astexol is based on the EuroTrough design. The collector field consists of 112 Loops respectively 5,376 solar collector elements (SCEs).
More than 354 MW of electrical power are installed world-wide on the base of parabolic trough technology. The parabolic trough collector is the key component of solar thermal power plants of this type. A European consortium has developed, erected and tested a new cost effective lightweight collector (EuroTrough) as a prototype installation in Spain. Within the consortium schlaich bergermann und partner is responsible for design and engineering.

  • Location

    Badajoz, Spain

  • Client

    Elecnor, Madrid, Spain

  • Our Scope of Work

    design, detailed engineering, tender documents

  • Aperture width 6 m
  • SCEs per SCA 12
  • Aperture area 366,000 m²
  • SCE length 12 m
  • Loop length 600 m
  • Licensor schlaich bergermann und partner
