Kampmannbrücke across Ruhr River

Essen, Germany, 2019

The new bridge Kampmannbrücke over the river Ruhr connects the Essen districts of Heisingen and Kupferdreh replacing a steel-concrete composite bridge from the 1950s, which had to be torn down.
The new main bridge is designed as a self-anchored cable-stayed bridge with a composite deck. The existing columns and pile trestles of the old bridge served as supports for a shoring for the steel and cable construction, thus avoiding a more complex construction with the free cantilever method.
The result is a distinctive and economical structure that fits in elegantly into the surrounding area. This is also due to the development of an innovative tensioning method, allowing for the design of the rope anchorages to be particularly compact. As a result, they fade into the background, providing an unobstructed view on the river Ruhr.


  • Location

    Essen, Germany

  • Architect

    schlaich bergermann partner

  • Cooperation

    Breinlinger Ingenieure, Tuttlingen; eberhardt - die ingenieure gbr, Tecklenburg

  • Client

    Amt für Straßen und Verkehr der Stadt Essen

  • Contractor

    ARGE SEH Engineering GmbH - Fritz Meyer GmbH - Köster GmbH

  • Our Scope of Work

    conceptual design, detailed design, erection analysis, workshop drawings, technical spots check

  • Total length 173 m
  • Width 10.50 m
  • Spans main bridge 45.20 - 68.00 m
    approach bridge 10.00 - 3 x 16.60 m

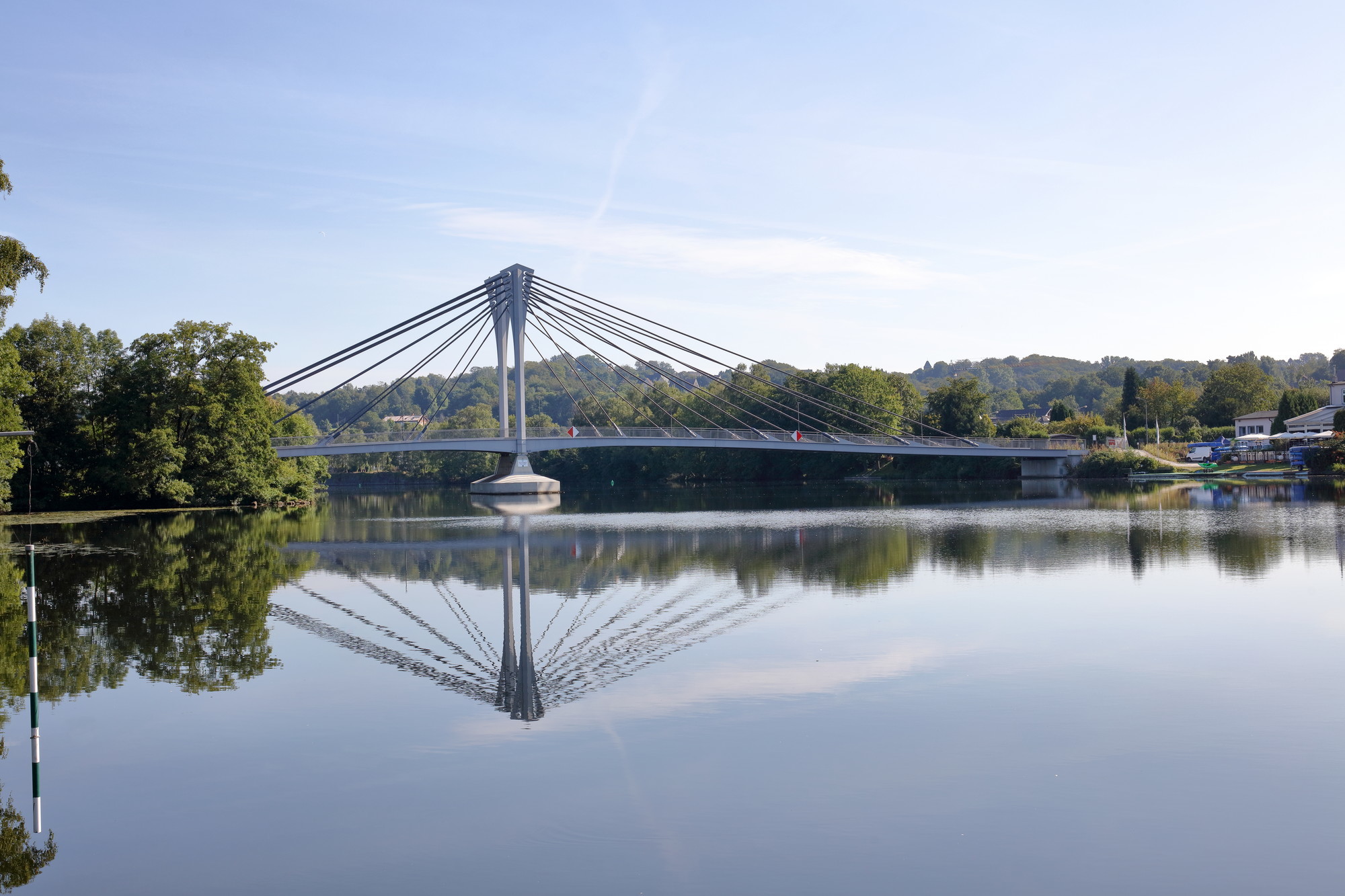

  • Kampmann Bridge across Ruhr River © Andreas Kordt/Stadt Essen
