Footbridge over Rhine-Main-Danube Channel at Keilheim

Kelheim, Germany, 1987

In Kelheim (Bavaria) the extension of the river Altmuehl to the Main-Danube-Channel required a footbridge with a clearance diagram of 61.84 m x 7.6 m. An additional challenge was the minimum ramp length of 30 m which was a result of the maximum slope of 10%. An advantage was the possibility to use a scaffolding for the production, because the bridge could be built before the completion of the channel.

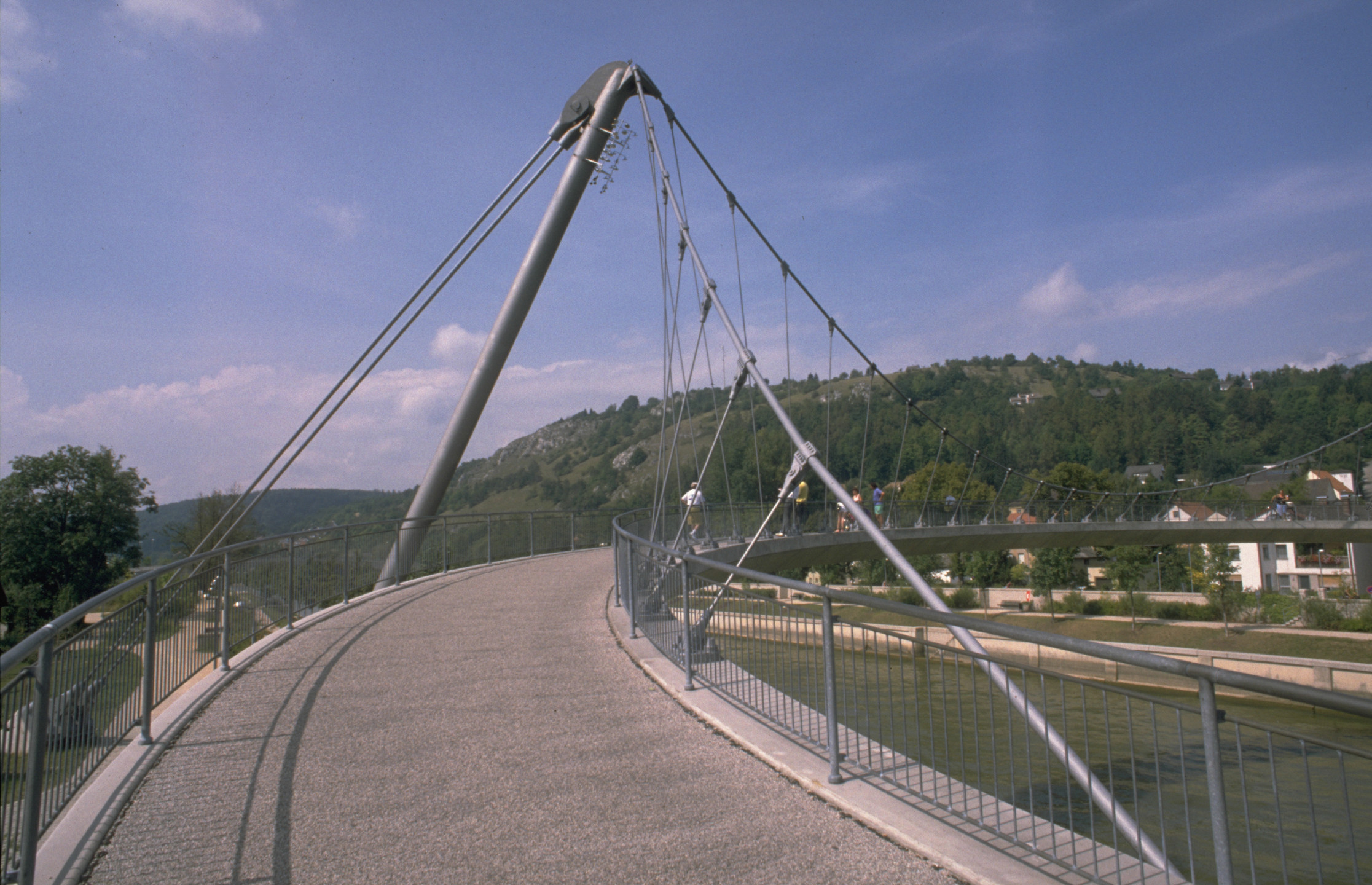

Thus the curved design could be developed, distinguished by a very slender pre-stressed concrete girder and suspended one-sided on a spatial cable structure. The main cable is redirected via two tubular steel poles and is anchored in the abutments. An experience of a three-dimensional structure is given to the pedestrian by the permanently varying inclination of the suspenders.


  • Location

    Kelheim, Germany

  • Architect

    Ackermann und Partner, München

  • Client

    Rhein-Main-Donau AG, München

  • Contractor

    Pfeifer Seil- und Hebetechnik, Memmingen

  • Our Scope of Work

    conceptual design, construction design, site supervision

  • Span 61.84 m
  • Radius of curvature 37.79 m at bridge center,
    18.89 m at ramp crossover
  • Suspenders 2.3 m spacing,
    30 mm diameter
  • Guy ropes of masts 117 mm diameter
  • Length of superstructure 92 m (curved part)
  • Number of suspenders 38
  • Main cable 90 mm diameter
  • Footbridge over Rhine-Main-Danube Channel © schlaich bergermann partner
  • Footbridge over Rhine-Main-Danube Channel © schlaich bergermann partner
  • Footbridge over Rhine-Main-Danube Channel © schlaich bergermann partner
