Glass Bridge Lisbon

© Bellapart

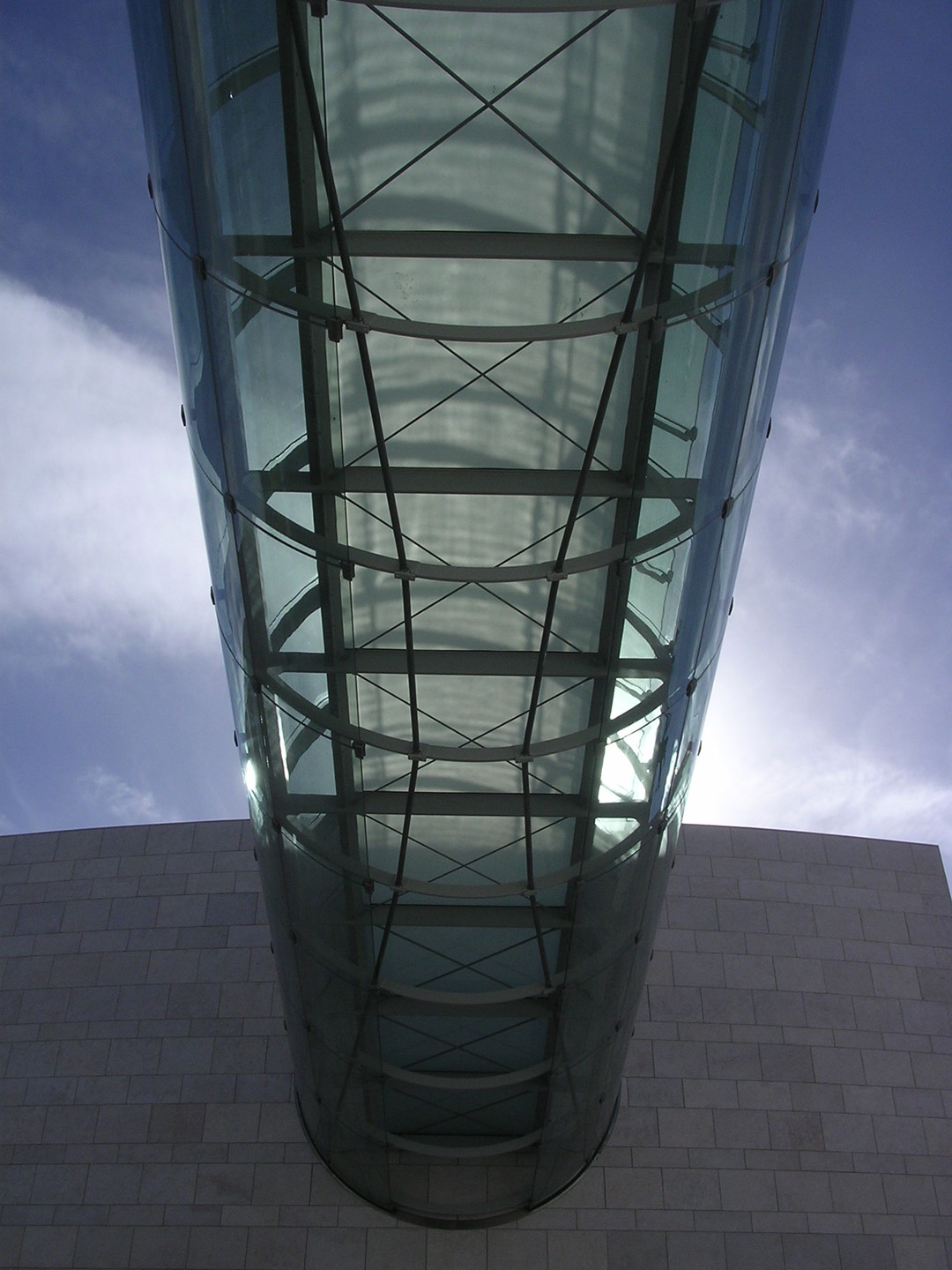

The “Centre of the Unknown”, a biomedical research facility of the Champalimaud Foundation was designed by Charles Correa Associates from Mumbai, India. It comprises two building complexes set in a large public area that accommodate treatment units, research laboratories, an auditorium and exhibition area, as well as the offices of the Champalimaud Foundation itself. A visual highlight is the light-weight steel and glass bridge that connects the two buildings. The glass envelope encasing the bridge consists of curved panels of laminated glass. A filigree cable supported steel structure also forms the substructure of the glass envelope. The walkway and the railing also consist of laminated safety glass and thereby confer upon the entire structure the desired sense of elegance and transparency.

Location
Lisbon, Portugal
Architect
Charles Correa Associates, Mumbai
Owner
Champalimaud Foundation
Project Responsibility
Andreas Keil
Features
Glass

Insights

Technical Data

Span
21 m (68 ft)
Glass surface
approx. 380 m², thereof 285 m² bent glass
Material
steel approx. 20 t
cables 2 VVS 50

Lectures

Awards

Footbridge Awards
Winner: Footbridge Hafen Grimberg, Gelsenkirchen (aesthetics long-span and technical long-span); Highly commended: Glassbridge Lisbon (aesthetic short-span and technical short-span) and Passerelle La Défense Paris (technical long-span)
