IGA 2003 Rostock - North Bridge

Rostock, Germany, 2003

The North Bridge is one of the few already existing three-span stress-ribbon bridges. The extraordinary transparency of this bridge across a flood plain is a result of the low construction height. The stress-ribbons of micro-alloy structural steel are anchored in concrete abutments founded on injection drilled piles. Hinges supports are used as intermediate support, equipped with a blade spring each as flexible saddle. For the slab 12 cm thick prefabricated concrete elements are bolted onto the stress-ribbons. The tubular steel railing with mesh wire effectively assists in the vibration-dampening without impairing the structure's transparency. The weight of the pavement's concrete slabs and the shallow rise of the stress-ribbons provide the stability for the bridge.


  • Location

    Rostock, Germany

  • Architect

    WES & Partner, Landschaftsarchitekten, Hamburg

  • Client

    IGA GmbH, Rostock

  • Our Scope of Work

    conceptual design, construction design, site supervision, lighting design

  • Overall length 104.6 m (343 ft)
  • Stress ribbons 2 x 600 mm x 30 mm S690QL1 (2 x 24 in x 1.2 in)
  • Plan area 418 m² (4499 sq ft)
  • Utilization width 3.7 m (12 ft)
  • Span 27 + 38 + 27 m (88 + 124 + 88 ft)
  • Construction height only 15 cm total (5.9 in)
  • Total width 4 m (13 ft)

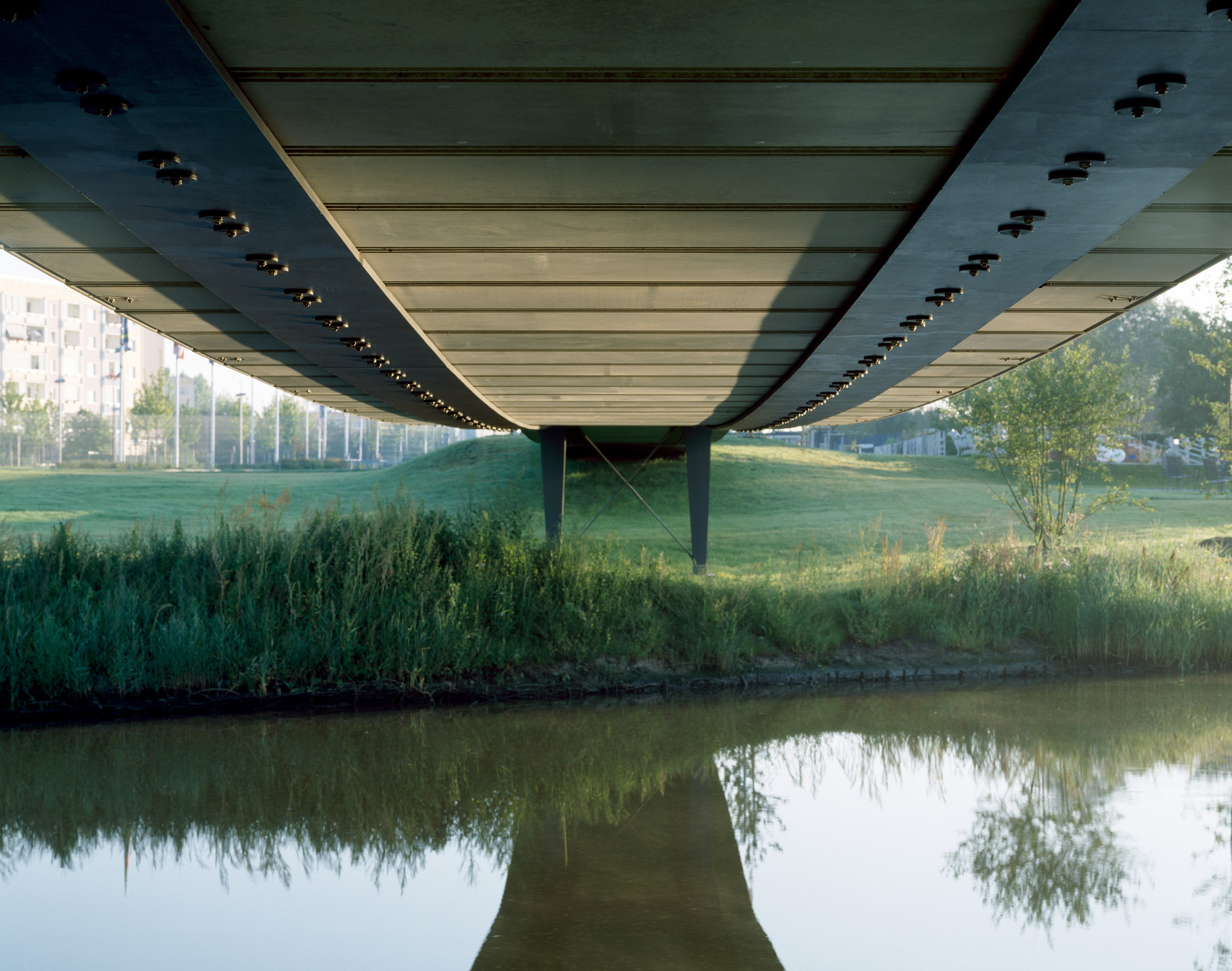

  • IGA 2003 Rostock - North Bridge © HG Esch
  • IGA 2003 Rostock - North Bridge © HG Esch
  • IGA 2003 Rostock - North Bridge © HG Esch
