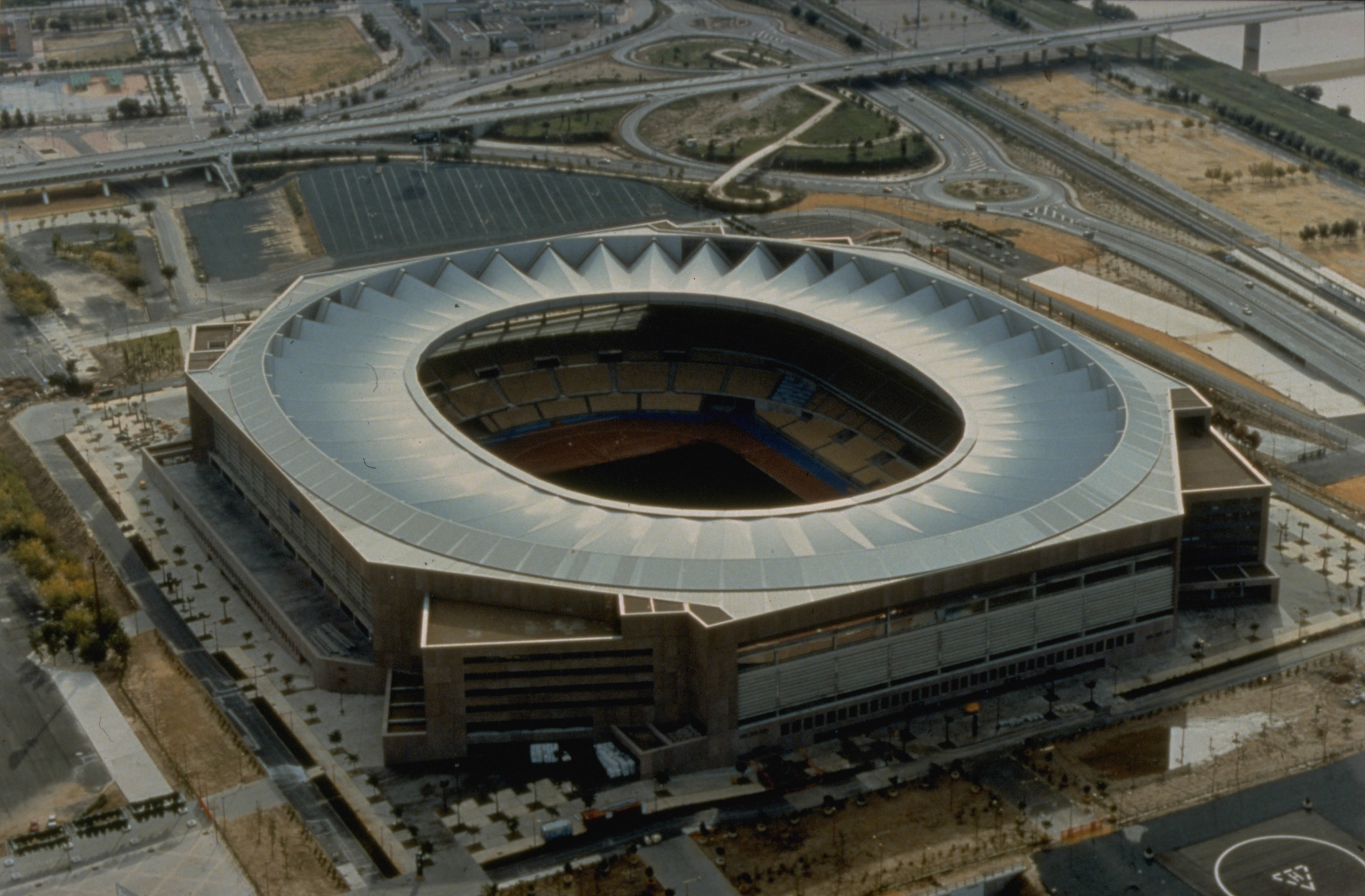

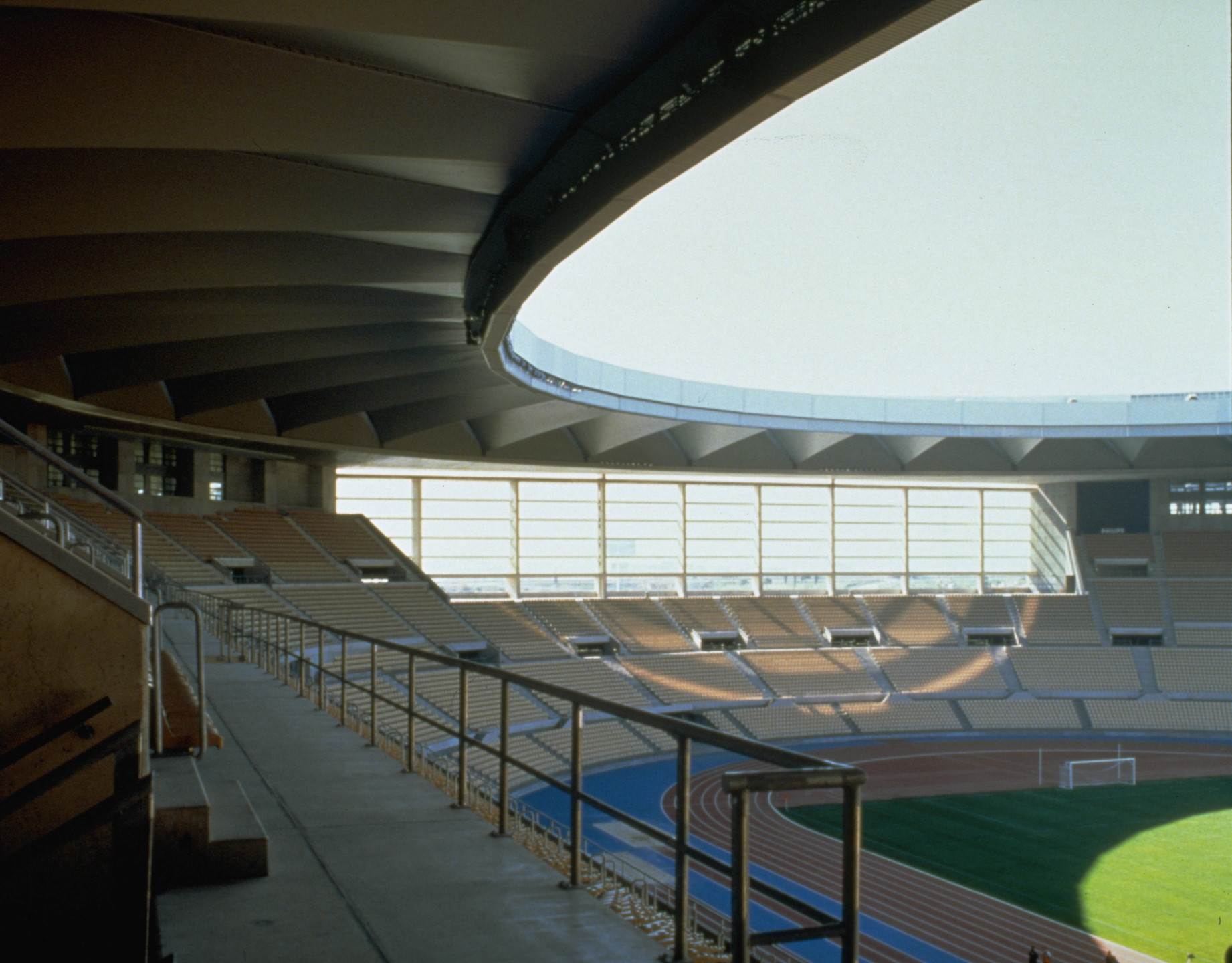

The "Estadio Olimpico" which is situated on the Cartuja Island, the former Expo-site in Seville, was opened to the public in May 1999. It is covered by a light cable supported membrane roof 25,000 m² in plan. The membrane oscillates between 44 upper and 44 lower radial cables which span between an outer stiff compression ring and an inner tension ring. The overall structural system, a spokes wheel roof, is similar to the roof of the "Gottlieb-Daimler-Stadion" in Stuttgart, Germany. The innovative feature introduced here is that, contrary to the Stuttgart roof, in Seville the membrane is actually a structural load bearing component. It connects and tensions the radial cables, thus giving the necessary tension and stiffness which the roof needs.
- Location
Seville, Spain
- Architect
Cruz y Ortiz, Sevilla
- Cooperation
Ayesa, Sevilla (initial design)
- Client
Ayuntamiento de Sevilla
- Contractor
ACS, Spain (general contractor); Pfeifer, Germany (cables); Ceno, Germany (membrane)
- Our Scope of Work
conceptual design, construction design, site supervision, erection analysis
- Plan area membrane roof 25,000 m²
- Total area membranes 27,500 m²
- Steel cables approx. 400 t
- Plan area compression ring 6,000 m²
- Steel approx. 2,500 t
