Swimming Bath Aquatoll Neckarsulm

Neckarsulm, Germany, 1990

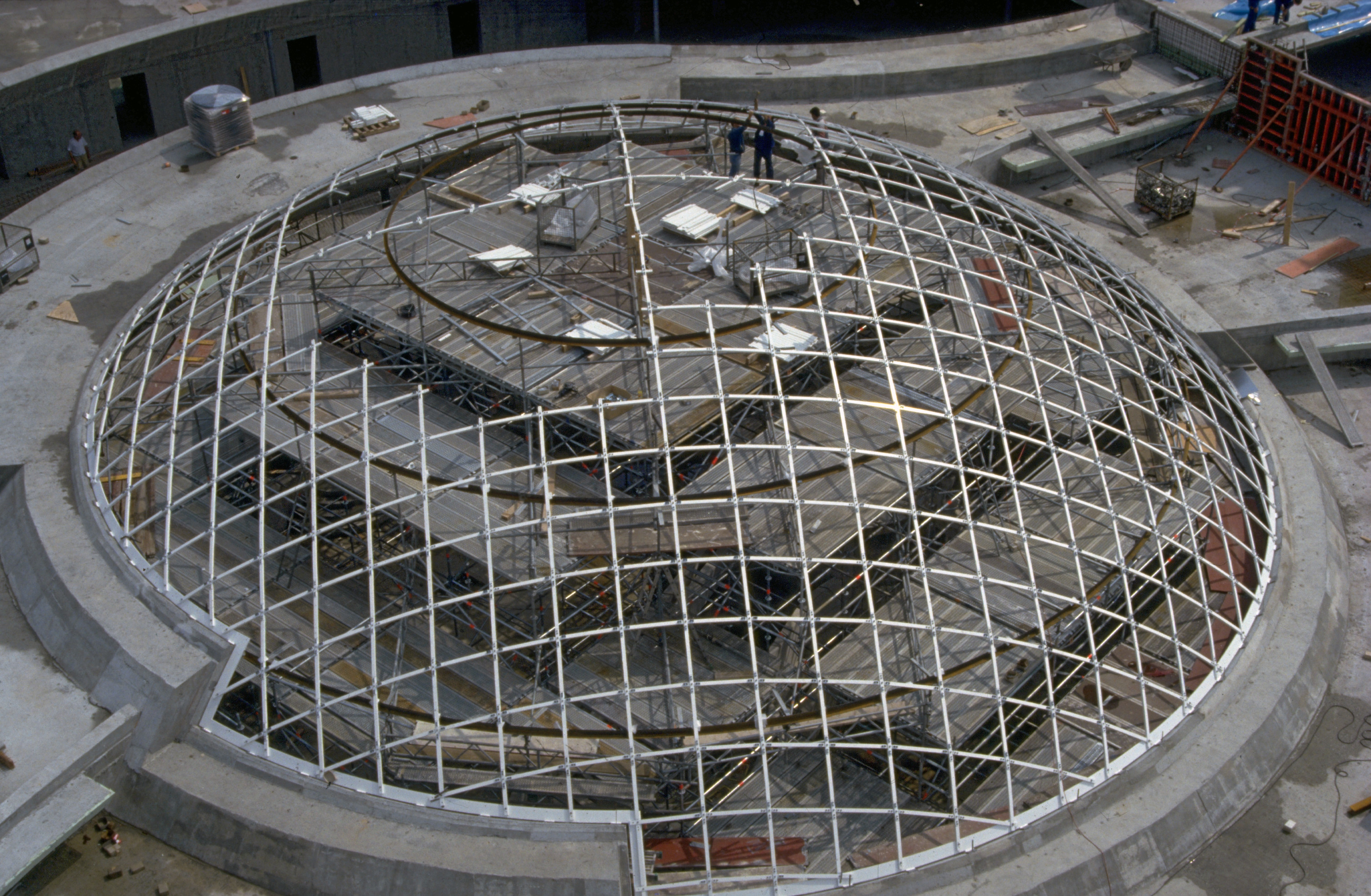

The architect had conceived the idea of an ethereal spherical dome supported from a terraced substructure. The used concept makes it possible to form any free shape from members which are all equal in lenght, except at the periphery. Since the grid with quadrangle mesh is not really able to carry loads, the grid is stiffended by diagonal prestressed cables producing a triangular mesh geometry. Thus the load bearing behavior becomes that of an ideal membrale shell.


  • Location

    Neckarsulm, Germany

  • Architect

    Kohlmeier und Bechler, Heilbronn

  • Client

    Stadt Neckarsulm

  • Contractor

    H. Fischer GmbH, Talheim

  • Our Scope of Work

    conceptual design, construction design, site supervision

  • Area 560 m²
  • Span 25 m
  • Grid width 1 m x 1 m
  • Radius of dome 16.50 m
  • Rise 5.75 m
  • Material spherical curved thermopane glazing

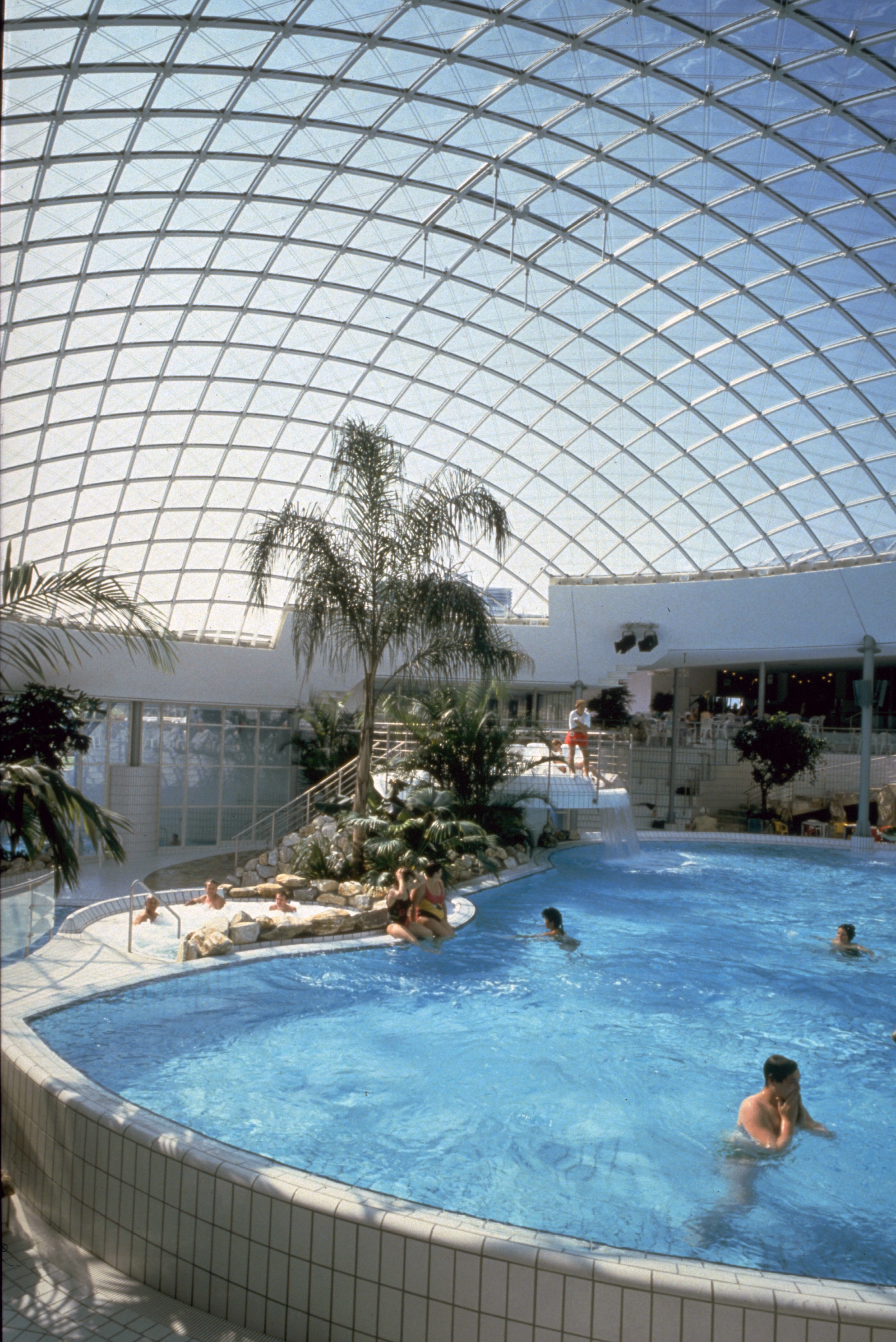

  • Swimming Bath Aquatoll Neckarsulm © H. Fischer GmbH

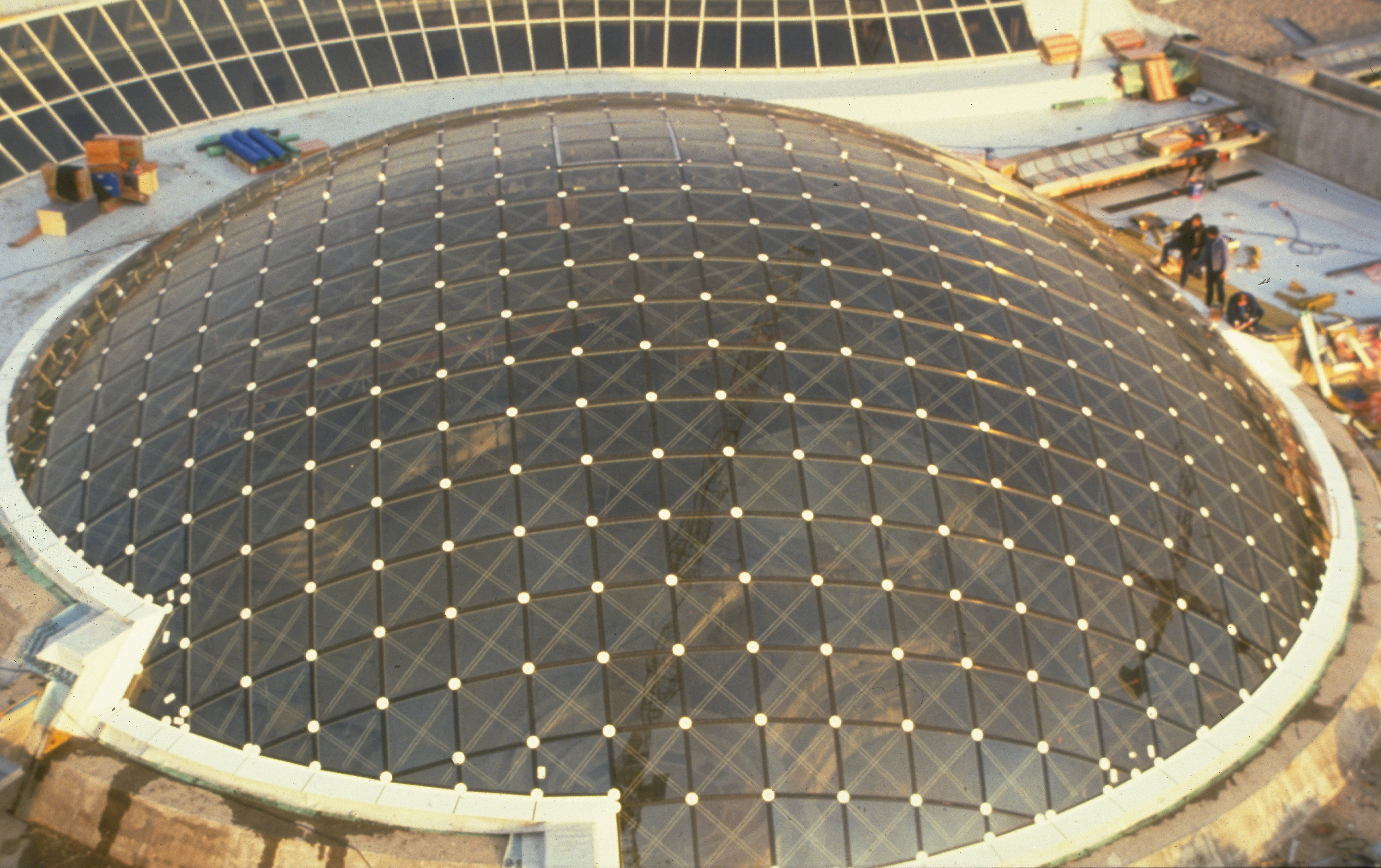

  • Freizeitbad Aquatoll Neckarsulm © H. Fischer GmbH
  • Freizeitbad Aquatoll Neckarsulm
  • Freizeitbad Aquatoll Neckarsulm
  • Freizeitbad Aquatoll Neckarsulm
