Administration and production building SOLON AG - check engineering
Berlin, Germany, 2009

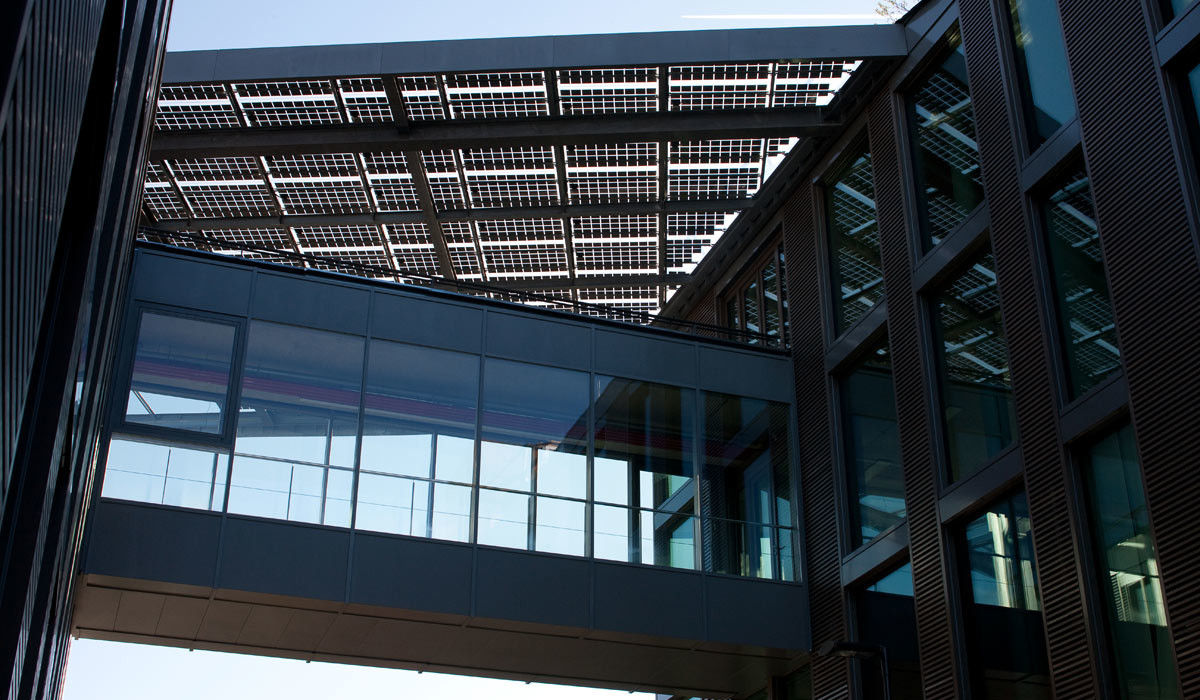

In the district Adlershof of Berlin a production hall and an administration building were built for the company SOLON AG, a producer of photovoltaic modules. The production hall forms the northwestern part of the building complex and is connected by bridges to the administration building. The structure of the hall is divided by 24 axes in longitudinal direction and 19 axes in transverse direction. The exterior facades are aligned to the administration building. The one-storey production hall is restocked in some areas. Southeast of the hall, the site was built with a one- to four-storey administrative building with several courtyards. The production hall consists of a prefabricated reinforced concrete frame construction, the administration building of a reinforced concrete building with flat slabs in exposed concrete. A building-integrated photovoltaic system delivers an output of 210 kWp.
Location
Berlin, Germany
Architect
Schulte-Frohlinde Architekten, Berlin
Client
Solon AG
Structural engineer
GuD Geotechnik und Dynamik Consult GmbH, Berlin
Our Scope of Work
check engineering of foundation, structure, facades and roofs
Gross cubic capacity172,782 m³ total
Base areahall approx. 137 m x 95 m, administration triangular floor plan with side lengths of approx. 90 m x 80 m
GFA32,715 m² total
Main usable areaapprox. 18,900 m² hall, approx. 8,300 m² administration
