Kopp Verlag commercial building Rottenburg - check eningeering

Rottenburg, Germany, 2013

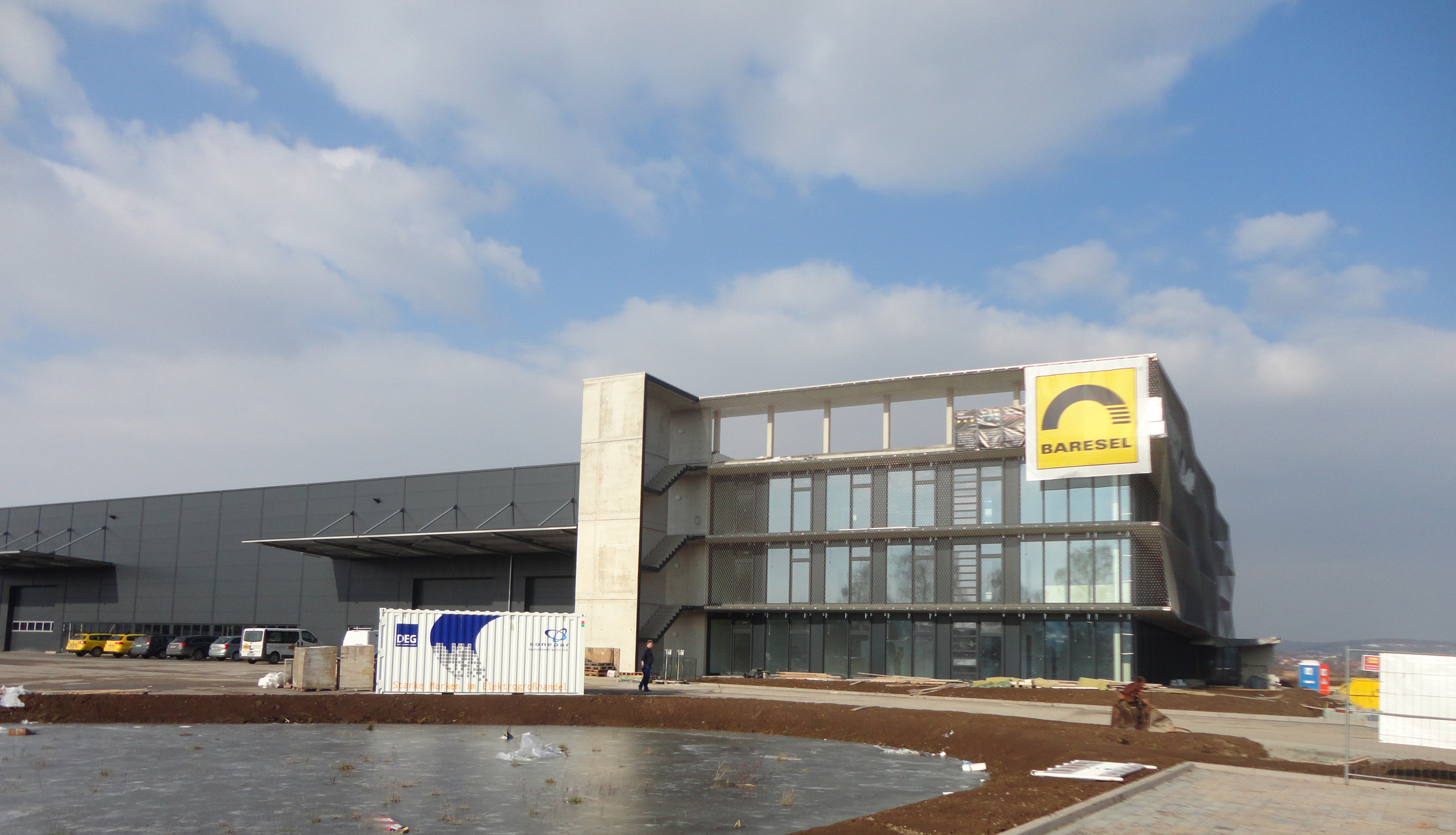

The scheme includes the new construction of a warehouse as a steel structure, and an adjacent administrative building comprising a reinforced concrete structure. The single-storey hall is a steel framework cladded with troughed steel sheet metal. The distance between the two-span steel frames is 6.0 m. The rectangular footprint of the administrative building features two atriums notched into the building that form it into the letter E. A truss made of pre-fabricated reinforced concrete beams spans over the atriums and supports a glass roof. Around the two-storey reinforced concrete building, emergency-escape balconies project from the slabs. These are thermally separated from the building by a Schöck Isokorb construction. A pre-stressed cable net serves as anti-fall guard for the balconies. On the top floor, the slab of the emergency-escape balconies rests on projecting supports. The buildings are located in a seismic zone III.


  • Location

    Rottenburg, Germany

  • Architect

    Harald Kreuzberger, Rottenburg

  • Client

    Kopp Verlag Rottenburg

  • Structural engineer

    Reck+Gass Ingenieurgesellschaft, Horb am Neckar

  • Contractor

    Baresel, Tübingen

  • Our Scope of Work

    check engineering of stability, fire protection and noise insulation; site supervision

  • Warehouse dimension 66.7 m x 6.3 m
    height approx. 10.5 m
  • Administration building dimension 70 m x 21 m
    height approx. 13.5 m
